Accessories

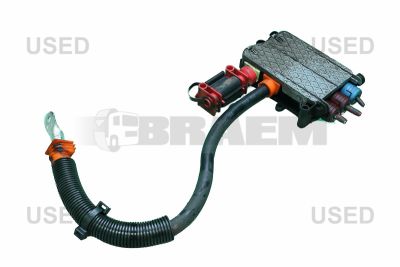

Wiring harness Accessories protect electrical connections against moisture, tensile loads, vibration and chafing. Connector housings, pin contacts, socket contacts, cable seals, blanking plugs, cable lugs, repair splices and retaining clips together determine the reliability of a wiring repair. Intermittent sensor faults or electrical consumers cutting out are often caused by poor contact connections or damaged cable protection, rather than by the connected component.

These Accessories also include cable ducts that house wiring harnesses and the mounting hardware used to secure harnesses and cable ducts to vehicle components. Cable ducts guide and protect the wiring harness; suitable clips, clamps and brackets keep it in the specified position.

Always identify parts using the vehicle's chassis number and check the relevant parts documentation. Visual comparison or selection based solely on the model name is never sufficient. For example, on MAN TGS and TGX with D26 engines or Mercedes Actros with OM 471 engines, connector keying, pin assignments and cable cross-sections may vary depending on the production period, emissions specification and equipment. On buses and vans, such as Citaro, TGE and Sprinter, every repair must also comply with the original wiring harness specification.

Distinguish between sealed and unsealed connectors, primary contact locks and secondary locking devices. Select pin and socket contacts according to contact size, current rating, conductor cross-section in mm² and the specified contact plating, such as tin or gold. Do not substitute contact materials without approval. Cable seals must also match the outer diameter of the insulation; the same copper cross-section does not guarantee an identical seal fit.

For protective conduits and cable ties, the temperature range, abrasion resistance and resistance to engine oil, fuel and cleaning agents are decisive. Polyamide and polypropylene are not necessarily interchangeable. Where exposure to water spray is expected, choose a sealing system with the specified IP (Ingress Protection) rating, which only applies when correctly assembled with matching seals and blanking plugs.

Green corrosion, discoloured contact cavities and melted connector housings indicate moisture ingress or increased contact resistance. Spread socket contacts may give normal readings when stationary but cause intermittent open circuits under vibration. Broken clips and hardened grommets cause chafing, while overtightened cable ties damage the insulation and conductors.

1. Read the fault codes and consult the wiring diagram. Record which circuits, supply points and earth connections are shared by the affected functions. Check the vehicle system voltage and fuses first.
2. Inspect the cable routing, locking devices and seals. Only disconnect connectors in accordance with the manufacturer's shutdown procedure. Check contact retention using the specified tool; do not insert oversized test probes into socket contacts.
3. Use a multimeter to measure the voltage drop across supply connections and earth points while the electrical consumer is under load. Compare the readings with the manufacturer's specification. An unloaded continuity test alone does not rule out a poor connection.
4. Carry out a controlled wiggle test while recording measured values. Investigate brief signal interruptions with an oscilloscope. Only measure resistance with the circuit de-energised and the relevant electronics disconnected as specified; do not use an insulation tester on connected control units.

Replace damaged contacts along with faulty seals and locking devices. If contact cavities show burning, the connector housing must also be replaced. Remove corroded conductor sections back to clean copper; replace a longer cable section if moisture has penetrated beneath the insulation.

Use the specified stripping length and a suitable, calibrated crimping tool. Check crimp height, insulation support and tensile strength against the contact specification. Only use approved repair splices; soldered joints are not automatically suitable for wiring harnesses exposed to vibration because they create localised stiffness. When repairing CAN (Controller Area Network) wiring, restore the specified twist and any shielding.

Fit protective conduits and clips with sufficient bend radius and freedom of movement, clear of hot surfaces and sharp edges. Then recheck the voltage drop, clear the fault codes and carry out a functional test under operating load. This addresses not only the fault itself, but also its original mechanical or electrical cause.
