Tipper installation for MAN / Mercedes trucks and buses

Loading...

All prices are available upon request, unless you have a login. Log in for your personal prices.

View as Grid List

Items 1-24 of 2050

per page
Search
  1. New
    Truck and bus spare parts - Tipper installation - FIL3165
    Availability:

    €45.11

    Guide price excl. VAT

    Equivalenten:
    81.32118.6010, 81321186010, 81.32118-6010, ZF0501.215.163, 0501215163, 0501 215 163, MANH11002, H11002, H11002, HENE907H, E907H, 95535785, 95535785, DT5.50170, 550170 ...
  2. New
    Truck and bus spare parts - Tipper installation - MANH6006
    Availability:

    €85.17

    Guide price excl. VAT

    Equivalenten:
    81.06668.0009, 81066680009, 81.06668-0009, H 6006, 6006, H6006, 6006, H6006, 6006, MANH6006, H6006, H6006, MANH6008, H6008, H6008, HENEY992H, EY992H, FIL9020, 9020 ...
  3. New
    Truck and bus spare parts - Tipper installation - UFI25.206.01
    Availability:

    €41.38

    Guide price excl. VAT

    Equivalenten:
    FIL3282, 3282, UFI25.206.01, 2520601, MB000.180.69.65, 0001806965, A0001806965, MB000.180.70.65, 0001807065, A0001807065, MB471.184.08.25, 4711840825, A47118408 ...
  4. New
    Truck and bus spare parts - Tipper installation - UFI25.TG1.00
    Availability:

    €55.38

    Guide price excl. VAT

    Equivalenten:
    81.32118.6010, 81321186010, 81.32118-6010, ZF0501.215.163, 0501215163, 0501 215 163, MANH11002, H11002, H11002, HENE907H, E907H, FIL3165, 3165, VSB4.215.0004, 42150004 ...
  5. New
    Truck and bus spare parts - Tipper installation - ZF0501.215.163
    Availability:

    €44.58

    Guide price excl. VAT

    Equivalenten:
    81.32118.6010, 81321186010, 81.32118-6010, 0501215163, 0501215163, 0501215163ZF, 0501215163ZF, DAF1828379, 1828379, ZF0501.215.163, 0501215163, 0501 215 163, ZF5961.307.148 ...
  6. New
    Truck and bus spare parts - Tipper installation - ZF0634.313.300
    Availability:

    €16.87

    Guide price excl. VAT

    Equivalenten:
    06.56937.1480, 06569371480, 06.56937-1480, 0634313300ZF, 0634313300ZF, ZF0634.313.300, 0634313300, 0634 313 300, MEI610.045, 610045, PAKO1231, O1231
Page
per page
Tipping system for MAN and Mercedes trucks
The right tipping system for the chassis and body

A tipping system comprises more than the tipping cylinder: the power take-off (PTO), hydraulic pump, hydraulic oil tank, pipes, control valves, safety devices and mounting points must work together as a system. On MAN TGL, TGM and TGS and Mercedes Atego, Arocs and Actros trucks, the configuration depends on factors including the chassis, transmission, payload capacity and body.

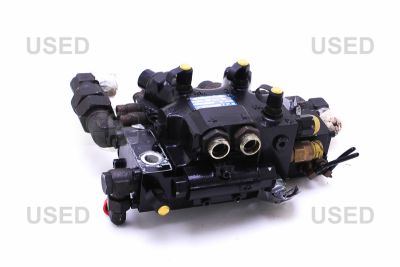

The power take-off drives the hydraulic pump; the pump provides the oil flow that enables the tipping cylinder to raise the tipper body. The hydraulic oil tank stores the oil and supplies the pump; the suction filter keeps dirt out of the pump. Pipes and hoses carry oil between the components, while control valves control raising and lowering. The pressure relief valve limits system pressure, and the load-holding valve prevents uncontrolled lowering. mounting points and pivot points connect the system to the chassis and body and allow the tipper body to tilt.

Hydraulic pumps include piston pumps and gear pumps. Piston pumps are efficient and suitable for high working pressures, but are generally more expensive and more sensitive to contamination. Gear pumps have a simple, robust design and are generally less expensive, but are less efficient at high working pressures and may therefore generate more heat.

Parts must always be identified using both the chassis number and the bodybuilder’s documentation. Visual comparison or selection based solely on the model name is never sufficient. Also check the available power take-off and pump drive: even within engine families such as MAN D08 and D26 or Mercedes OM 936 and OM 471, the transmission and body can differ considerably. Distinguish between front-end, underbody and three-way tipping systems, and check the cylinder stroke, installation length, pin dimensions, pivot points and clearance between the body and chassis.

Signs of wear and step-by-step diagnosis

A tipper body that rises slowly, fails to lift under load or lowers uncontrollably does not automatically indicate a faulty tipping cylinder. First check the hydraulic oil level and condition, the suction filter and any visible leaks. Foaming may indicate air entering on the suction side; contamination and overheating accelerate wear on the pump, seals and control valves. Inspect hydraulic hoses for abrasion, swelling and damaged crimp sleeves, and check cylinder rods for scratches, corrosion and traces of oil around the seals.

Next, use a suitable pressure gauge at the designated test point to measure the working pressure while raising the body under a controlled load. Systems often operate in the region of 160–250 bar, but the specified pressure and pressure relief valve setting are always body-specific. Compare the reading with the bodybuilder’s specification; low pressure can also result from internal leakage or a slipping pump drive. If necessary, measure the pump flow rate with a hydraulic flow meter and, for electrically operated control valves, check the supply voltage, ground connection and control signal during activation. If the body lowers on its own, assess internal leakage in the cylinder and the operation of the load-holding valve separately.

Safe replacement and readjustment

Before carrying out any work, always support the tipper body with the specified mechanical body prop; never rely on hydraulic pressure alone. Depressurise the circuit and mark the lines before removing components. Compare replacement parts for working pressure rating, flow rate, connection thread, seal material, cylinder dimensions and the fit of pins and bushes. A hose with the correct connection but an insufficient pressure rating is not a safe alternative.

After installation, fill the system only with hydraulic oil that meets the body specification, bleed it according to the prescribed procedure and first check its operation without a load. Then test the end positions, lowering speed, leaks and mountings under a controlled load. Also check that the tipper body clears the tyres, chassis components and lines: even a cylinder that fits mechanically can create dangerous lifting geometry if the body configuration differs.
