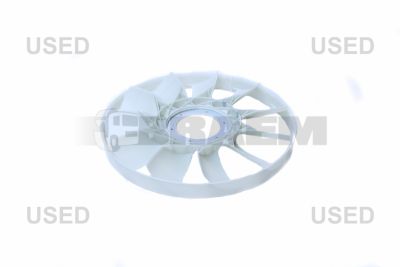

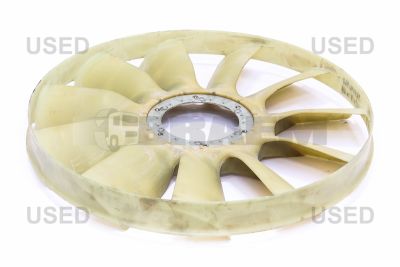

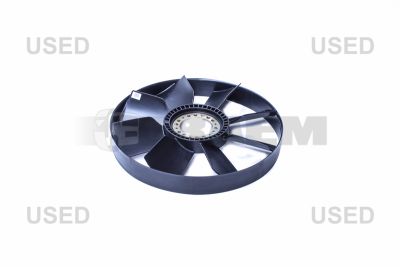

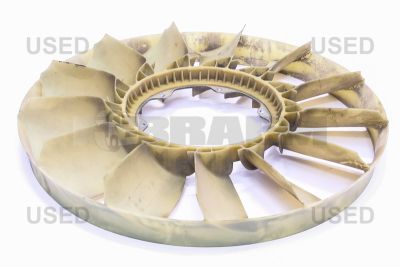

Fan and bearings

Viscous fan clutches and bearing assemblies control the drive and guidance of the cooling fan on MAN and Mercedes trucks, buses and vans. Depending on the cooling requirement, the viscous fan clutch connects the fan to the drive, usually via a belt-driven fan hub or a mechanical drive at the front of the engine. This ensures that sufficient air is drawn through the coolant radiator, intercooler and condenser only when required by the temperature. A defective viscous coupling, fan hub or bearing assembly causes insufficient cooling, excessive fan noise, belt problems and, in severe cases, damage to the radiator, fan blades or engine accessories.

The design varies considerably depending on chassis configuration, engine type, emission standard, fan diameter and available installation space. MAN engines such as D08, D20, D26 and D38 are fitted with both temperature-dependent viscous couplings and electronically or pneumatically controlled fan drives. Mercedes applications including OM 501, OM 502, OM 904, OM 906, OM 457, OM 460, OM 471 and OM 473 may differ in bolt pattern, hub diameter, pulley design, fan position and electrical control connection.

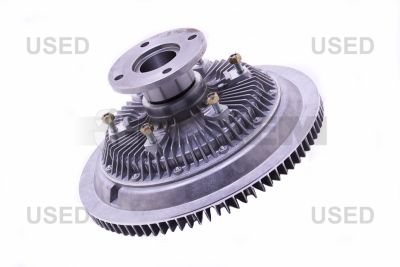

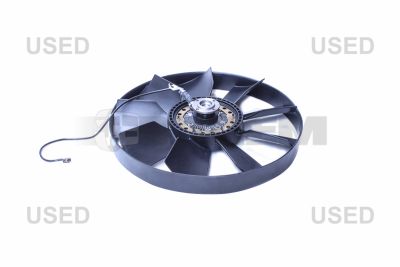

The unique feature of a viscous fan is that it does not always rotate at full speed with the belt. The actual transfer of power to the fan blades takes place via a special silicone fluid inside the coupling. A viscous coupling may be controlled by a bimetallic thermal system, in which a temperature-sensitive coil meters the internal silicone oil, or activated through electronic control. The fan bearing assembly often consists of a complete bearing housing unit with shaft, seals and preloaded roller bearings. Bearing fitment, axial play and radial runout are critical: even a small deviation can cause the multi-ribbed belt to run out of line or the fan to come into contact with the shroud or fan cowl. Therefore, always identify viscous couplings, fan hubs and bearing assemblies using the chassis number. Visual comparison or selection based solely on the model name is never sufficient.

A viscous coupling that does not engage causes a rising coolant temperature, especially under load, at low driving speeds or while idling. The cabin heating may perform less effectively, air conditioning operates less efficiently and the engine management system may activate a power limitation. A viscous coupling that remains permanently locked, on the other hand, causes a pronounced and continuous airflow noise, higher fuel consumption and unnecessary load on the belt drive and bearing assembly. Oily contamination around the coupling often indicates a silicone oil leak; in practice, such couplings generally need to be replaced and cannot be reliably rebuilt.

First, read out fault codes and live data for coolant temperature, intake air temperature, fan control and, where applicable, fan speed. Then check the cooling system for the correct fill level, leaks, thermostat operation and sufficient water pump flow: a defective viscous coupling must not be replaced before an underlying thermal problem has been ruled out. Use an infrared thermometer to measure the temperature at the coolant radiator inlet and outlet, and compare this with the engagement conditions in the diagnostic data.

With the engine switched off and cooled down, check the fan for radial and axial play. Turn the fan by hand and check for rubbing noises, jolting or rough roller bearing operation. Inspect the bearing housing, mounting bolts, pulleys and multi-ribbed belt for misalignment, heat discolouration and belt dust. A dial indicator on the fan hub reveals excessive radial runout. On electronically controlled versions, also check the power supply, earth, connector pins and wiring harness for corrosion or broken wires.

Replace a worn bearing assembly as a complete unit when the shaft runs roughly, the seal leaks or measurable play is present. During installation, contact surfaces must be clean and flat, the specified tightening torques must be observed and the fan must not be used as a lever. After installation, check belt alignment, clearance from the radiator and fan shroud, and correct engagement at operating temperature. Based on the chassis number, Braem can assist with the technical identification of the correct version, helping to reduce unplanned downtime caused by overheating.
